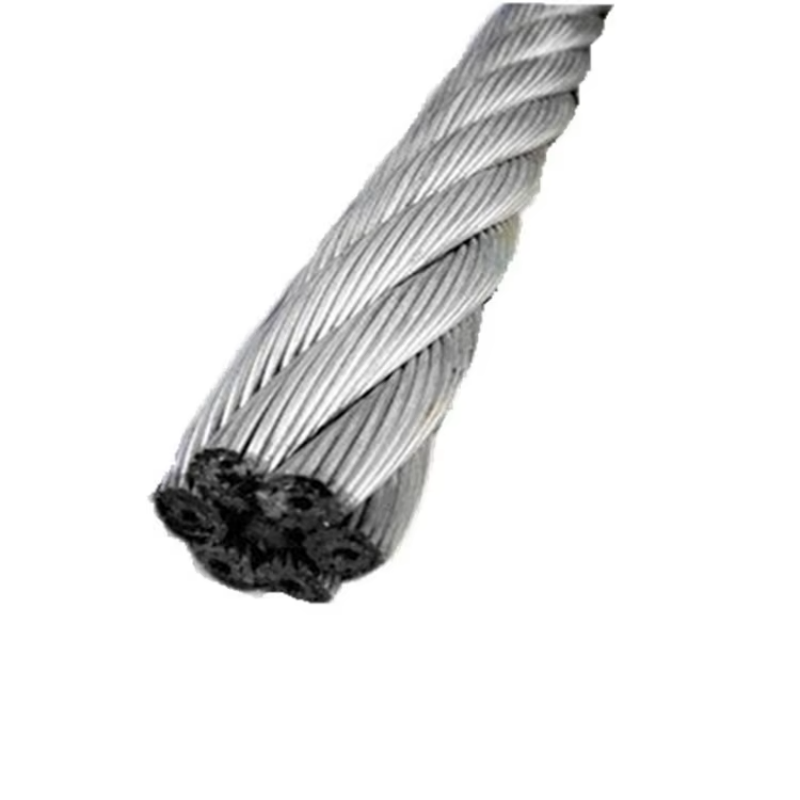

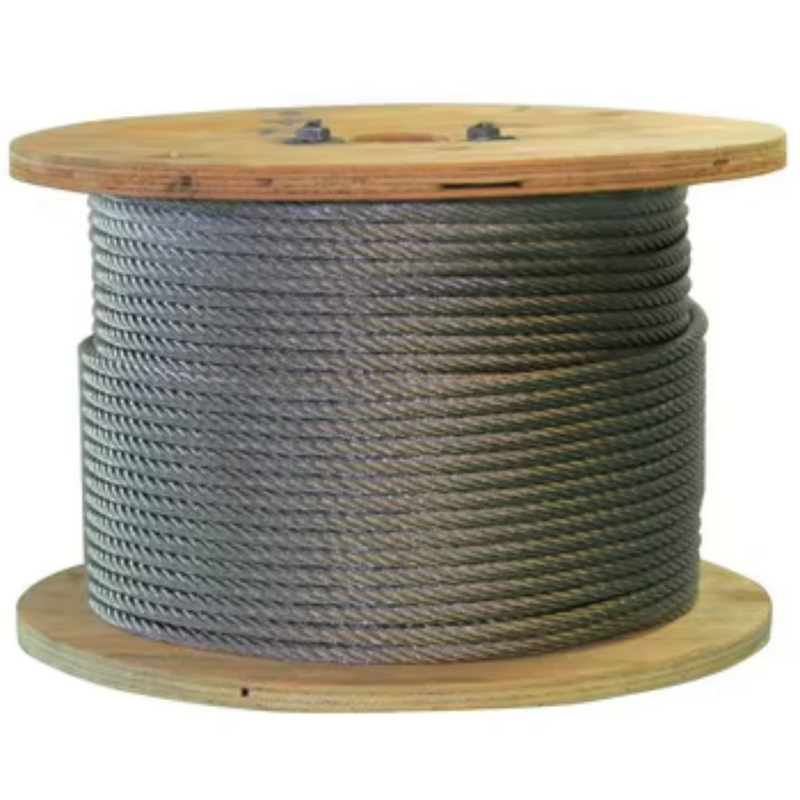

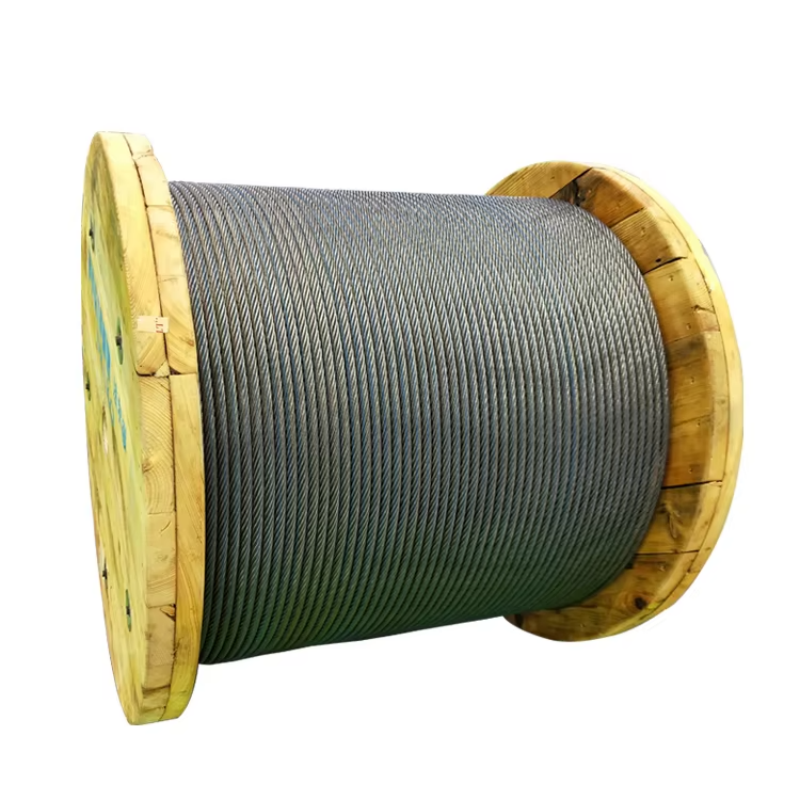

VTSP258 00 Elevator Hemp Core Wire Rope para sa Motor and Speed Governor Elevator Steel Cable

Nominal na Diameter ng Lubid	6*19S PP	Pinakamababang Breaking Load
		Dual Tensile,Mpa		Single Tensile,Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

Nominal na Diameter ng Lubid	Tinatayang Timbang	Pinakamababang Breaking Load
		Dual Tensile,Mpa		Single Tensile,Mpa
		1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

Nominal na Diameter ng Lubid	Tinatayang Timbang		Pinakamababang Breaking Load
			Dual Tensile,Mpa
			1370/1770		1570/1770	1620/1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN
8	26	25.9	35.8	35.2	38	37.4
9	33	32.8	45.3	44.5	48.2	47.3
10	40.7	40.5	55.9	55	59.5	58.5
11	49.2	49	67.6	66.5	79.1	70.7
12	58.6	58.3	80.5	79.1	85.6	84.2
13	68.8	68.4	94.5	92.9	100	98.8
14	79.8	79.4	110	108	117	115
15	91.6	91.1	126	124	134	132
16	104	104	143	141	152	150
18	132	131	181	178	193	189
19	147	146	202	198	215	211
20	163	162	224	220	238	234
22	197	196	271	266	283	283
